ENERGY MANAGEMENT SYSTEM
FX Smart Energy Management System is developed on the basis of FXIoT platform framework and work as a whole ecosystem with own gateway and edge server. It is able to connect to BMS & PCS, and deploy universal PV and energy storage models through gateways.
Real-time visual management and statistical analysis of all hardware under the system, covering daily operation and maintenance. We also provide users with real-time charge and discharge control and strategy management.
FX SMART GRID & HOME ALL IN ONE PLUS TOTAL SOLUTION

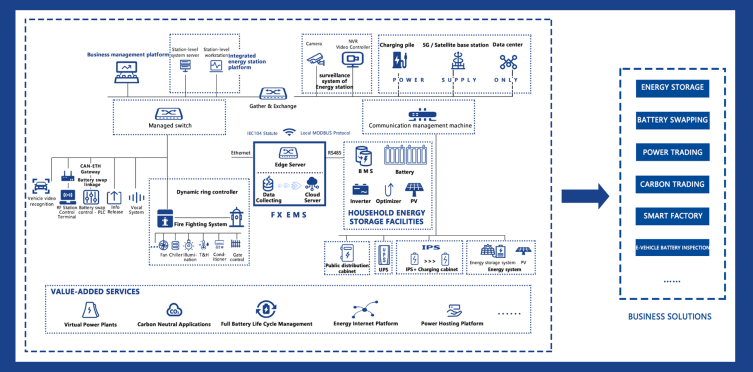

By combining our self-developed intelligent Energy Management System (EMS) and various hardware agents (such as inverters, collectors, energy storage machines, photovoltaic panels, etc.), we provide users with integrated household, small industrial and commercial energy storage solutions.

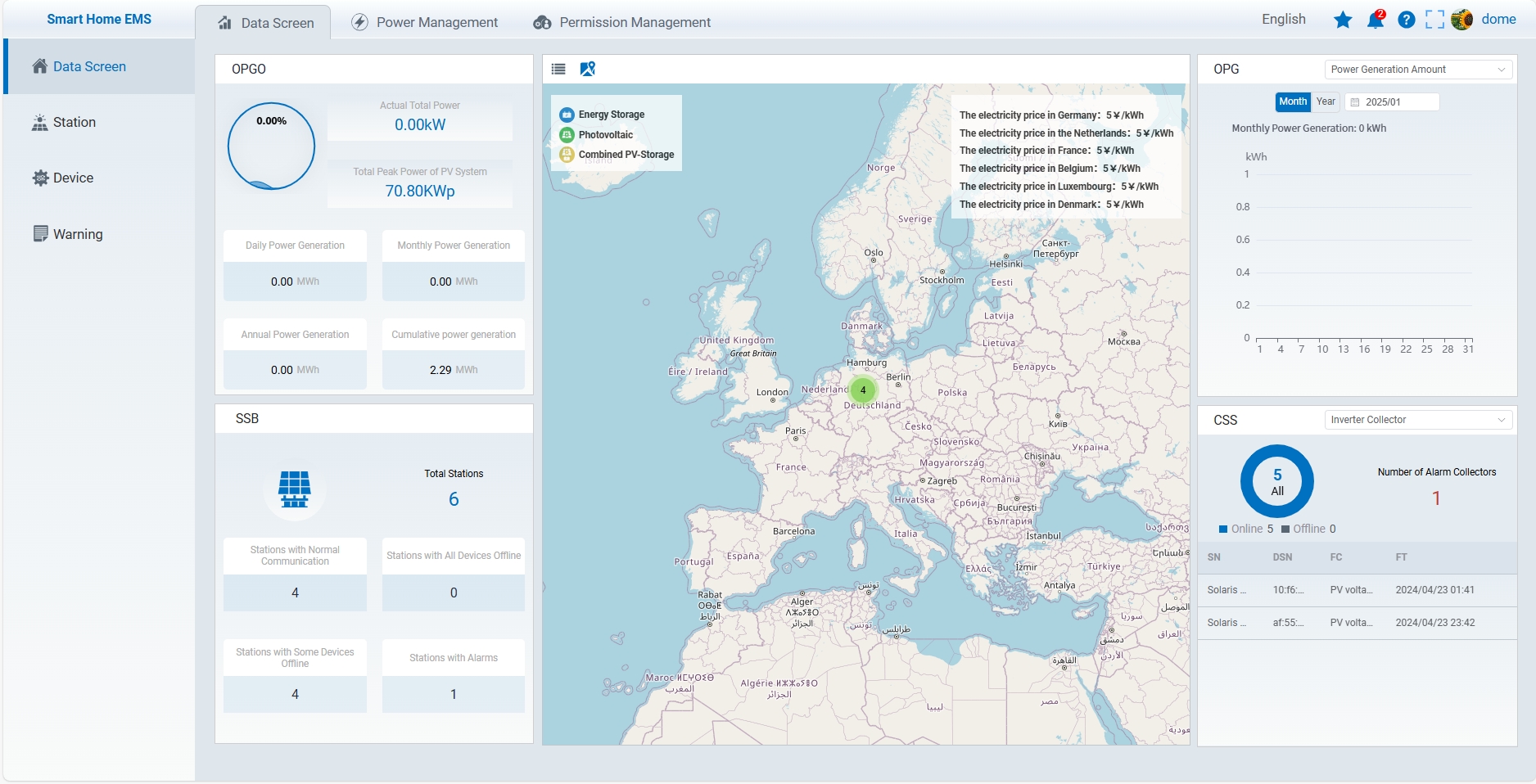

FX SMART GRID & HOME ALL IN ONE PLUS SYSTEM visualizes the list of all sites under the user and their corresponding statistics through the cloud platform, and provides real-time flow charts of these corresponding sites. The real-time status of hardware devices (including inverters, photovoltaics, optimizers, energy storage devices, etc.) is also displayed in detail on the platform. The system supports remote charge and discharge control through the combination of platform and intelligent gateway.
The system collects and processes real-time information of all kinds of hardware, as well as collects analog and switching quantities in real time. All kinds of integrated information is displaye: the overall power generation situation (history, cumulative, current real-time status) is displayed with data and charts，while the status of all the equipments under the power station/user is tracked.
Visualize diverse features of installed PV power stations.
Please move your mouse over the image to see the screen of independent station.

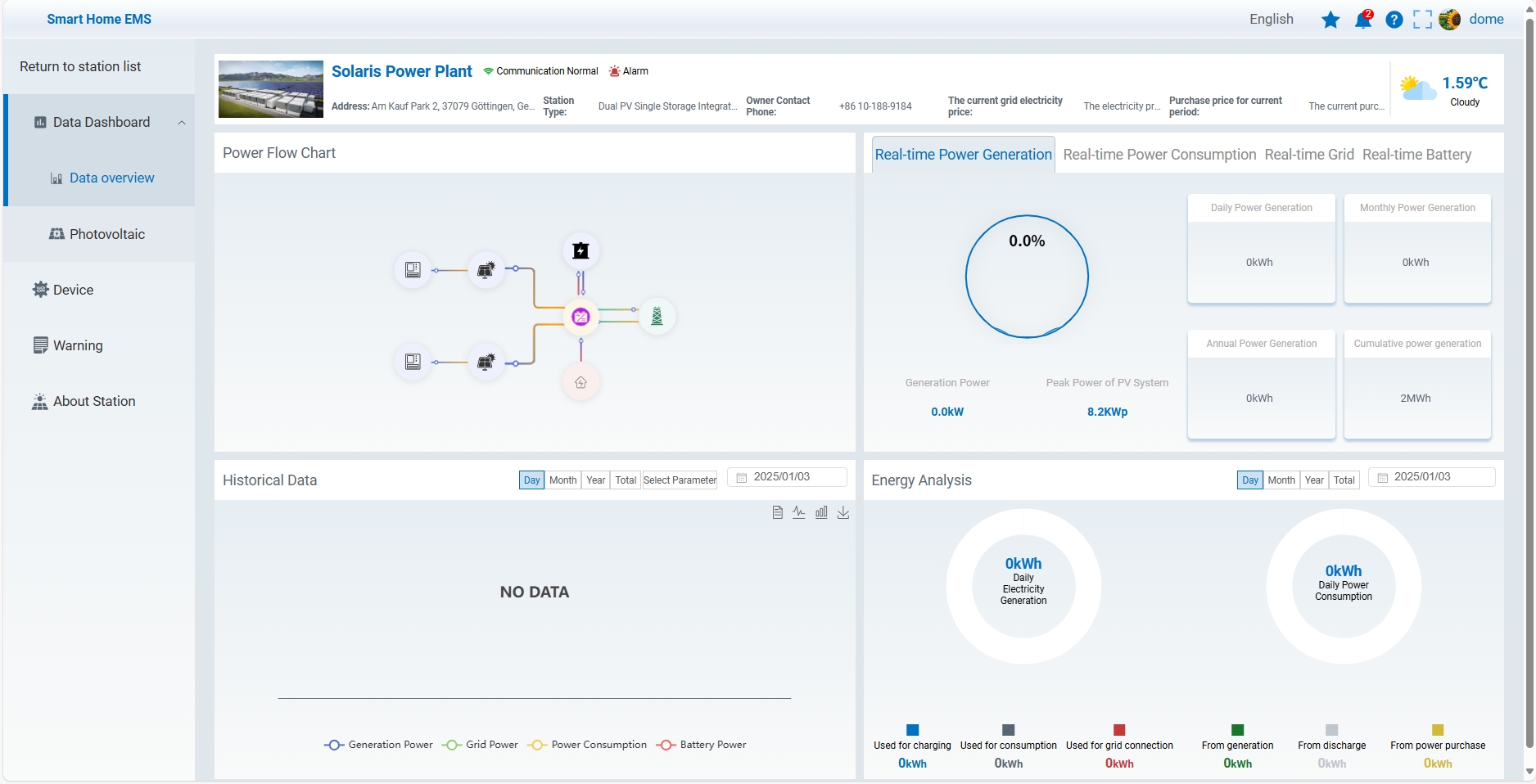

When a specific power station is located, the platform visually displays the relevant data and generates an exception alarm through a small bell. The flow diagram is displayed in real time. Any single element can be selected or hidden individually.
SOFTWARE DISPLAY: FX SMART EMS PLATFORM
CLOUD PLATFROM
All equipment in the power station as well as their respective corresponding relationships, current status, historical operation data, etc., can be displayed.

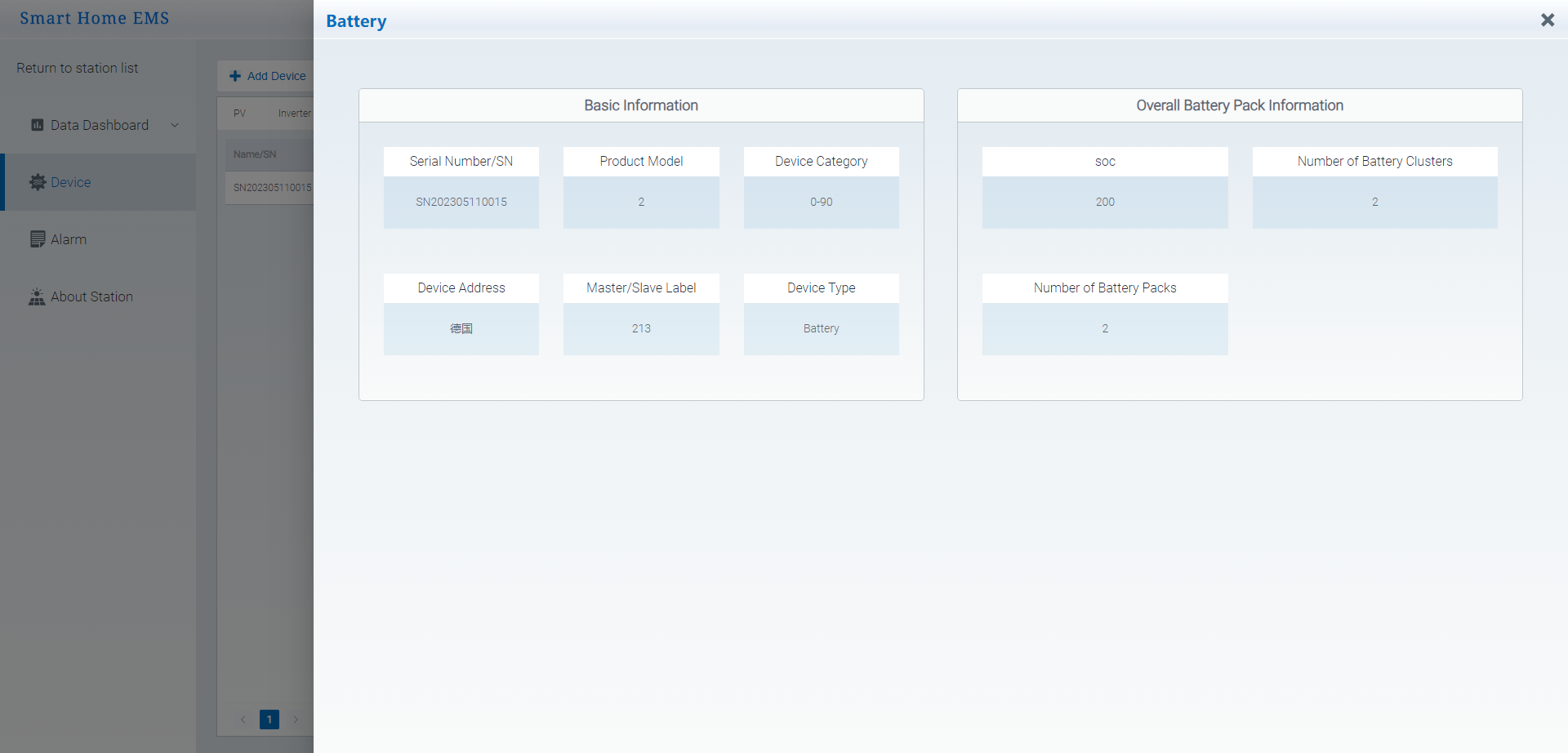

ESS: When the battery is selected, users can query real-time ESS status and SOC information.

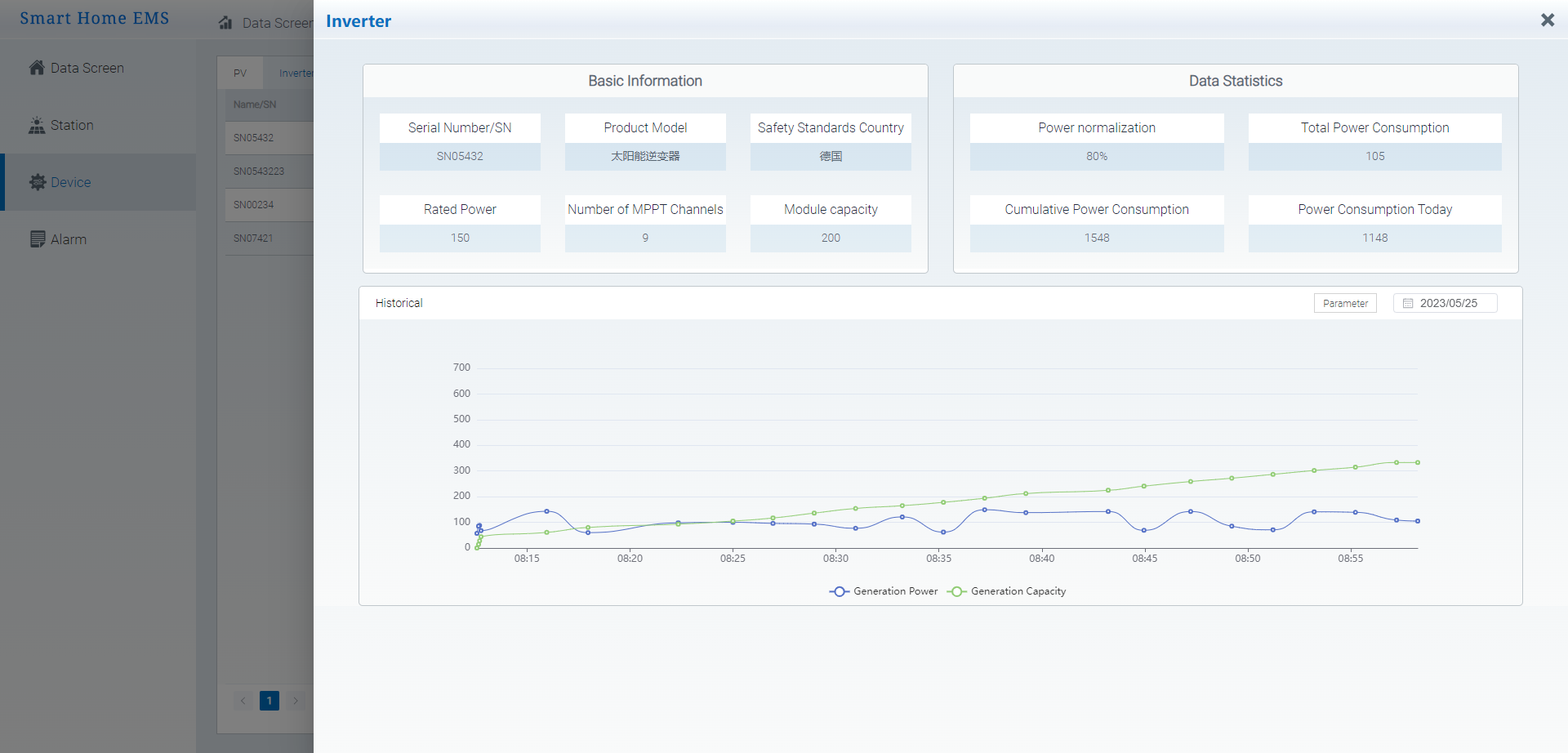

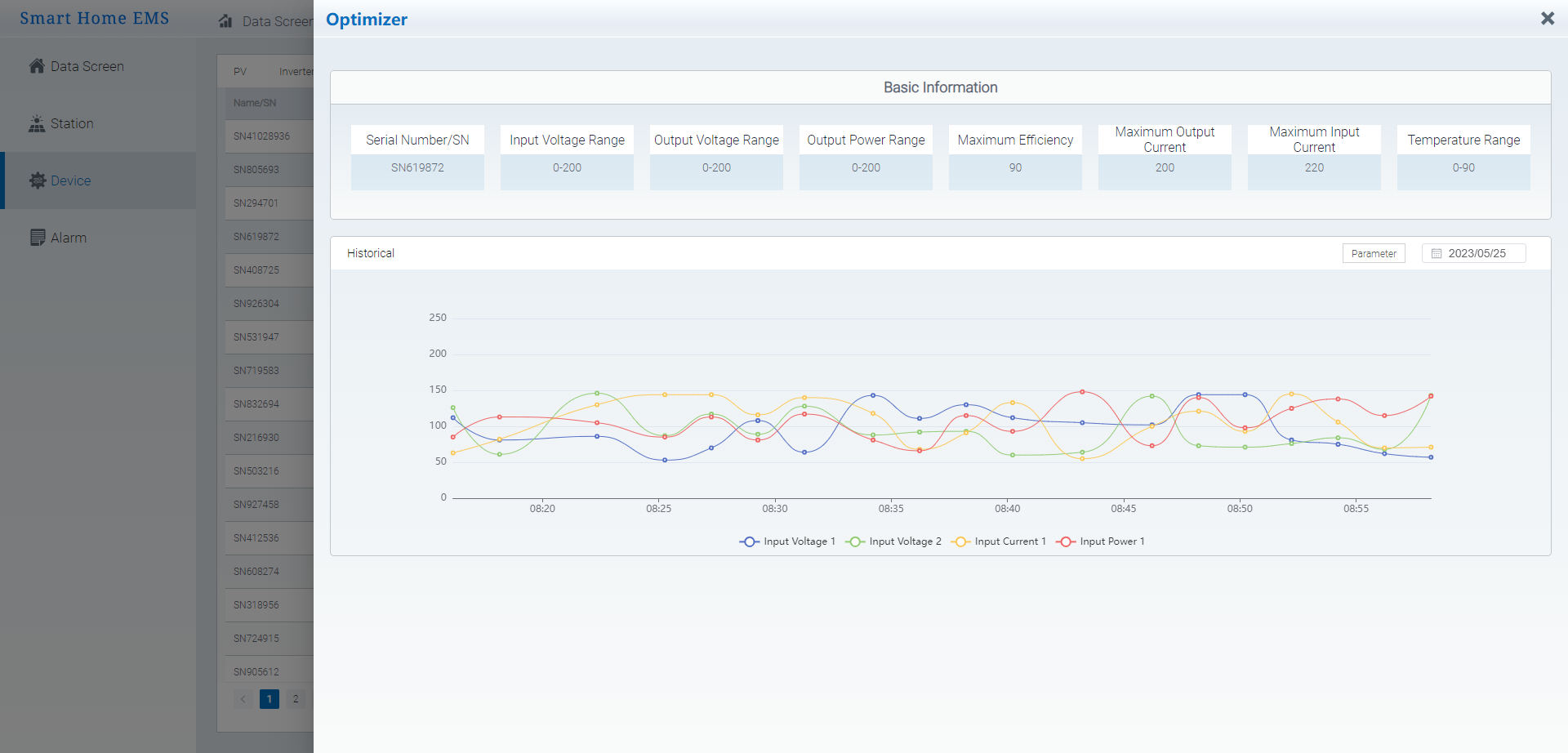

Inverters & optimizers are tracked. Historical and real-time graphs are provided.

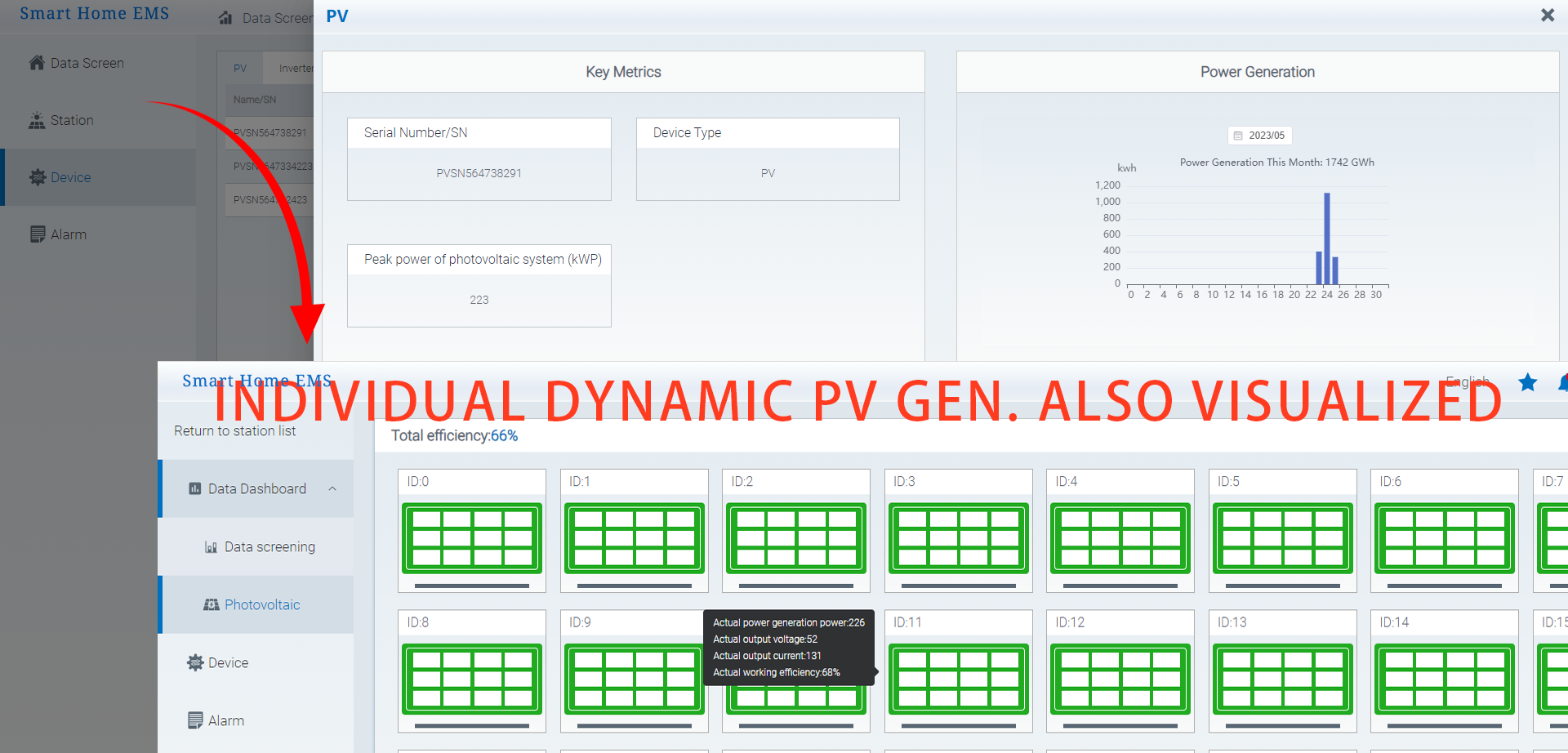

Photovoltaic: In addition to the summary status of photovoltaic information, the system can also help users understand the real-time independent operating status of each photovoltaic panel.
Real-time data visualization of each sub-system
SOFTWARE DISPLAY: FX SMART EMS PLATFORM
REAL-TIME DATA TRACKING
FX SMART GRID&HOME ALL IN ONE PLUS system provides optional value-added services of remote charge / discharge to help users achieve the purpose of managing power stations anytime and anywhere. Users can set timed charging / discharge, and personalized setting as well as modification of charging/discharge strategies in the system to achieve more targeted applications and provide effective support for accurate regulation and control of energy storage power stations.
Optional service: Remote charging and discharging control
SOFTWARE DISPLAY: FX SMART EMS PLATFORM
REMOTE CONTROL
MORE DETAILS>
FX Battery Swapping Station EMS system connects each changing power station, each equipment in the station and the energy monitoring system to achieve intelligent management of the changing power station. In the practical case, it has implemented:
① The real-time visual display of each station in the country and statistical analysis of all kinds of information
② Comprehensive coverage of daily operation and maintenance management, real-time fault alarm
③ Charge and discharge real-time, timing control and strategy management
④ Connect with the energy storage system BMS, and deploy a universal energy storage algorithm model
FX BATTERY SWAPPING STATION ENERGY MANAGEMENT SOLUTION
MORE DETAILS>

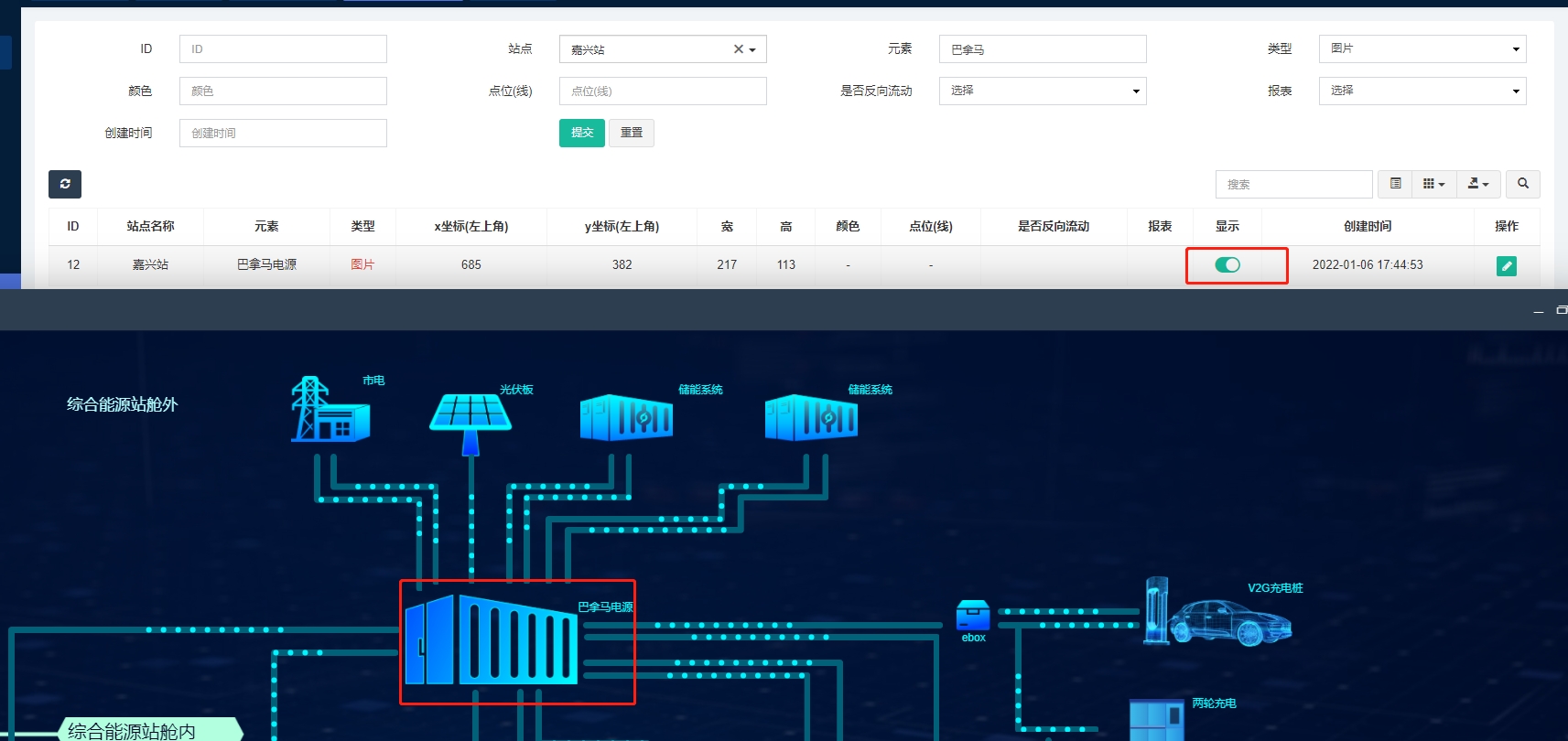

The list and distribution of power stations are displayed in map mode. Users can click on a specified station to check the corresponding power flow direction, and understand the charging / discharging information of energy storage. At the same time, the elements of the power flow diagram can be selected to be displayed or hidden, so that information can be shown to the management according to the demand.
Display method can be selected from list to map mode according to the demand. Sites can be searched by keywords or conditions to meet specific needs.
Visualization and management of information of each site of the battery swapping station. >>
PRACTICAL CASE: EMS DEMONSTRATION FOR BATTERY SWAPPING STATION
CLOUD PLATFROM

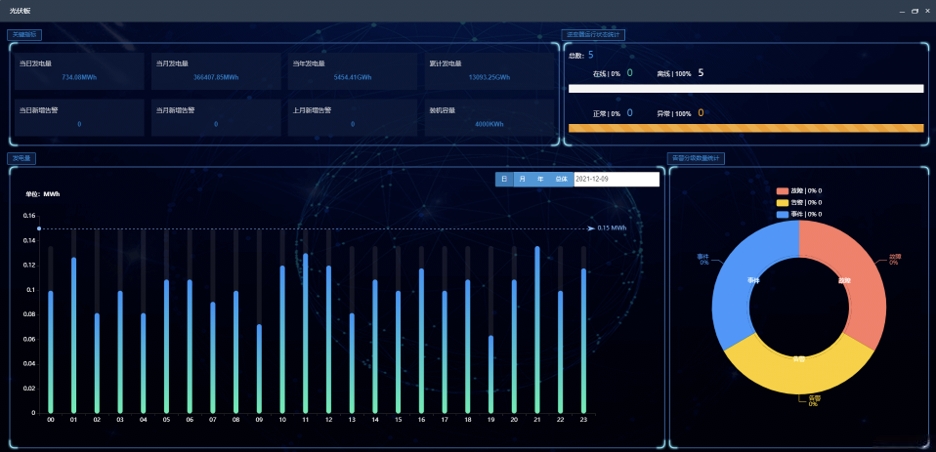

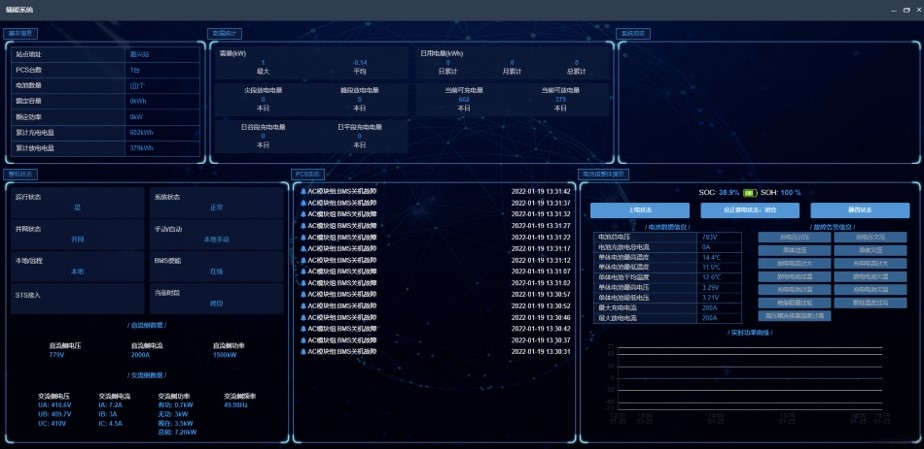

The energy management system reserves the interface with BMS to support the expansion of other applications. In the actual scenario, the system can monitor the operation status of various hardware (energy storage battery pack/cabinet, photovoltaic panels, inverters, etc.) and generate curves, and then visualize the energy storage application and the overall information of the exchange station site and terminus to the user in the form of a large visualization screen.
Expandable energy storage applications>>
PRACTICAL CASE: EMS DEMONSTRATION FOR BATTERY SWAPPING STATION
RESERVED BMS INTERFACE

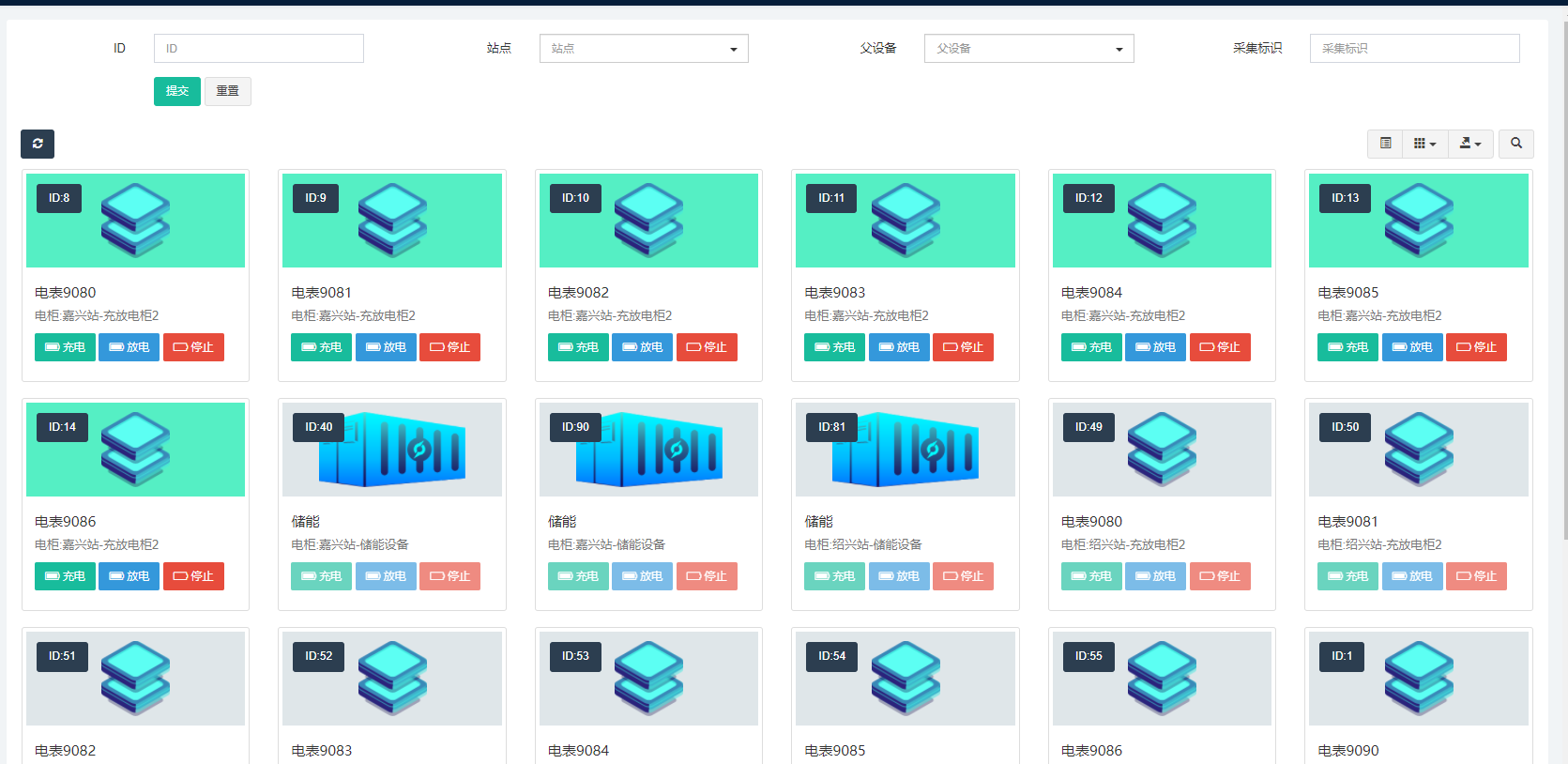

The EMS system applied in the actual case of the battery swapping station provides optional services of remote charging / discharging to help users achieve the purpose of managing the power station anytime and anywhere. Users can set up regular charging / discharging and personalize and modify the charging / discharging strategy in the system to achieve more targeted applications and provide effective support for precise control of the power station.
Optional service: Remote charging and discharging control>>
PRACTICAL CASE: EMS DEMONSTRATION FOR BATTERY SWAPPING STATION
REMOTE CONTROL
CORE FUNCTION / KERNFUNKTION
Visual management of electricity, water and gas consumption
Analyze power consumption and intelligently
improve the status quo
Power consumption and energy storage management and control based on electricity price periods
Reserve interface to the Battery
Management System
CUSTOM FUNCTION / BENUTZERDEFINIERTE FUNKTION
Realize real-time information mining of equipment usage through non-intrusive load analysis algorithms
Deploy dynamic scenarios tailored to plant economics
